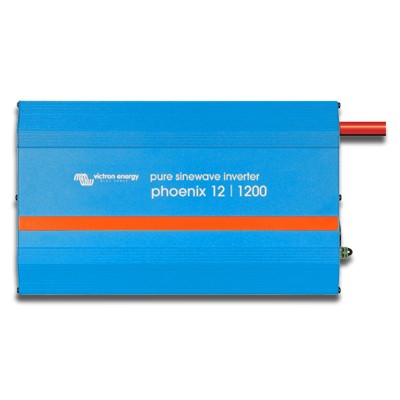

PHOENIx INVERTERS 180V - 1200VA 120V AND 230V

SinusMax Superior engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Extra start-up power

A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as computers and low power electric tools. To transfer the load to another AC source: the automatic transfer switch For our lower power models we recommend the use of our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 miliseconds) so that computers and other electronic equipment will continue to operate without disruption.

LED diagnosis

• Please see manual for a description.
• Remote on/off switch
• Connector for remote on off switch available on all models.
• Remote control panel (750VA model only)
• Connects to the inverter with a RJ12 UTP cable (length 3 meter, included).
• DIP switch for 50/60Hz selection (750VA model only)
• DIP switches for Power Saving Mode (750VA model only)

When operating in Power Saving Mode, the no-load current is reduced to 1/3 of nominal. In this mode the inverter is switched off in case of no load or very low load, and switches on every two seconds for a short period. I f the output current exceeds a set level. The inverter will continue to operate. If not, the inverter will shut down again. The on/off level can be set from 15W to 85W with DIP switches.
